MC series

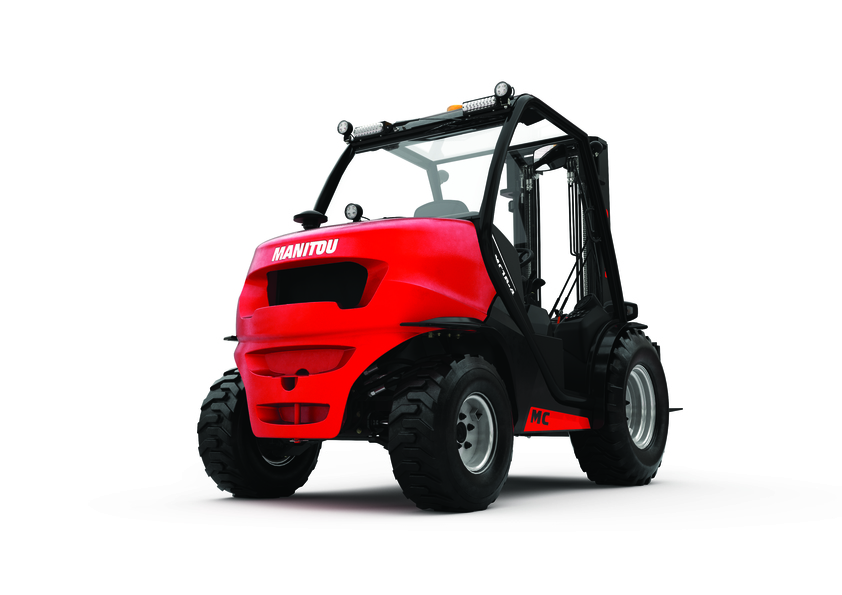

Manitou MC18

Manitou has designed a compact machine, with an overall width of 1450 mm, which allows the MC18 to manoeuvre into restricted spaces. With its curves and distinctive black and red colours, the MC18 truck will delight you with its comfort and ease of use, but also with its design. With its torque, its power and four motors integrated in the wheels, the MC18's terrain resistance is exceptional, allowing it to negotiate banks and slopes easily. With a ground clearance of 30 cm, the MC18 offers the highest ground clearance on the market. To maximise use, the MC18 is fitted with a device that allows you to switch from four-wheel to twowheel drive at the touch of a button.

Manitou MC series models & technical data

Model Length (m) Width (m) Height (m) Weight (kg) Engine Lifting capacity (kg)
MC 18-2 2.95 1.45 2.34 3405 Kubota 1800
MC 18-4 2.95 1.45 2.34 3562 Kubota 1800
MC 25-2 3.045 1.45 2.34 3875 Kubota 1800
MC 25-4 3.045 1.45 2.34 4035 Kubota 2500
MC 30-2 3.085 1.45 2.34 4355 Kubota 3000
MC 30-4 3.085 1.45 2.34 4515 Kubota 3000
